CTP Processors


 C P X Thermal Processor

The CPX Thermal plate processor from Shakti is an economical, robust and easy to use processor for all kinds of Thermal plates. The polypropylene tank construction is corrosion resistant and easy on maintenance. Some special user friendly features like auto clean, fluid handling system and plate program are incorporated.

        MAXIMUM PROCESSING WIDTH 66,86,92 Cm

        DEVELOP,WASH,GUM & DRY STATIONS

        MICROPROCESSOR BASED CONTROLS

        DIGITALLY CONTROLED TEMPERATURE SENSOR

        EASY TO HANDLE WASTE HANDLING SYSTEM

        NEW DIRECT CHILLING EXCHANGER FOR FASTER COOLING

        MEMORY PROGRAM FOR LEADING PLATE BRANDS

        PLATE COUNT FEATURE

        INTANK ROLLER FOR SMALLER PLATE FEED

        POLYPROPYLENE TANK FOR CORROSION FREE USAGE

        SOFTWARE DIAGNOSTIC PACKAGE FOR FASTER SERVICE

C P X Thermal Processor

TECHNICAL SPECIFICATION

MAX PROCESSING WIDTH

860 mm

MIN PROCESSING LENGTH

450 mm

PLATE THICKNESS

0.15 – 0.40 mm

DEVELOPER TANK CAPACITY

38 LITRES

PLATE PROCESSING SPEED

20 – 200 cms/min

DEVELOPER REPLENISHMENT

AREA/PER PLATE/LEVEL BASED

CHILLER

STANDARD

DEVELOPING TEMPERATURE

18 – 35 degrees C +- 0.2 C

DRIER TEMPERATURE

ROOM TEMPERATURE ~ 70 C

MICROPROCESSOR BASED

PLATE PROGRAMMING FACILITY

FRONT PANEL

LCD DISPLAY

DEVLOPER TANK

TWIN BRUSH ADJUSTABLE

FINISHER

RECYCLABLE

WASH SECTION

BRUSH FOR PLATE WASH

FLUID HANDLING SYSTEM

WASH AND CLEAN


MODEL

DIMENSION (mm)

PROCESSING WIDTH (mm)

POWER REQUIREMENT

GROSS WT.











CPX  660T

1540X1070X1050

660

220 V, 50/60HZ, 25Amps

350 kg

CPX  860T

1540X1270X1050

860

220 V, 50/60HZ, 25Amps

400 kg


thermalCTP1.jpg (12988 bytes)                    C P X Thermal Processor




In Sync With the Setter

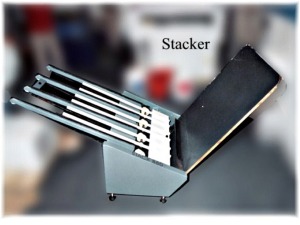

Stacker


Click for CPX Thermal Brochure PDF







VIOLET/PHOTOPOLYMER CTP PLATE PROCESSOR




The VPX Violet Photopolymer  plate processor from Shakti is state of the art processor for all kinds of photopolymer plates. The polypropelene tank construction is corrosion resistant and easy on maintenance. Easy to remove roller system helps maintain the equipment, the Pre heat section is accurate to +-2C using infrared ceramic heaters. Special fan spray in the wash section ensures a clean plate on exit.

VPX FEATURES



MIN PROCESSING LENGTH

350 mm

PLATE THICKNESS

0.15 – 0.40 mm

PRE HEAT TEMPERATURE

ROOM TEMPERATURE~120 C

PRE WASH

BRUSH & WATER @ 2.5 BAR

DEVELOPER TANK CAPACITY

24 LITRES

PLATE PROCESSING SPEED

120 cms/min (19 sec dwell time)

DEVELOPER REPLENISHMENT

AREA/PER PLATE/LEVEL BASED

DEVELOPING TEMPERATURE

18 – 35 degrees C +- 0.5 C

CHILLER

STANDARD

DRIER TEMPERATURE

ROOM TEMPERATURE ~ 70 C

MICROPROCESSOR BASED

PLATE PROGRAMMING FACILITY

FRONT PANEL

LCD DISPLAY

DEVLOPER TANK

TWIN BRUSH ADJUSTABLE

FINISHER

RECYCLABLE

WASH SECTION

FAN SPRAY @ 2.5 BAR



VPX TECHNICAL SPECIFICATION

MODEL

DIMENSION (mm)

PLATE WIDTH

POWER

Weight

VPX 660

1880 X 1150 X 1400

660 mm

220V/50/60Hz, 50 Amps

525 Kgs

VPX 860

1880 X 1350 X 1400

860 mm

220V/50/60Hz, 50 Amps

600 Kgs




Violet Photopolymer CTP Plate Processor


V P X Plumbing Side View

VPXDRV .jpg (39264 bytes)\

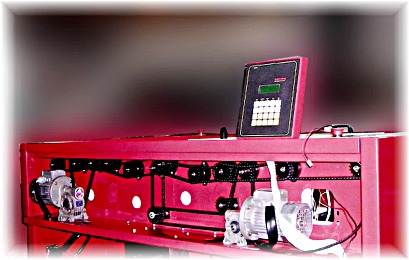

VPX Drive section


V P X Under the hood
